Product Description |
A-Cable DIA.mm | B-Cable Width mm | C-Bolt Size |
| 1PM051205 | 5 | 12 | MS |
| 1PM061205 | 6 | 12 | MS |
| 1PM061506 | 6 | 15 | M6 |
| 1PM081205 | 8 | 12 | MS |
| 1PM081506 | 8 | 15 | M6 |
| 1PM092008 | 9 | 20 | M8 |
| 1PM101205 | 10 | 12 | MS |
| lPMl0l 506 | 10 | 15 | M6 |
| 1PM102008 | 10 | 20 | M8 |
| 1PM121205 | 12 | 12 | MS |
| 1PMl 21506 | 12 | 15 | M6 |
| 1PM122008 | 12 | 20 | M8 |
| 1PM141506 | 14 | 15 | M6 |
| 1PM151506 | 15 | 15 | M6 |
| 1PM152008 | 15 | 20 | M8 |
| 1PM161506 | 16 | 15 | M6 |
| 1PM162008 | 16 | 20 | M8 |
| 1PM181506 | 18 | 15 | M6 |
| 1PM182008 | 18 | 20 | M8 |
| 1PM191205 | 19 | 12 | MS |
| 1PM201206 | 20 | 15 | M6 |
| 1PM201506 | 20 | 15 | M6 |
| 1PM202008 | 20 | 20 | M8 |
| 1PM221506 | 22 | 15 | M6 |
| 1PM222008 | 22 | 20 | M8 |
| 1PM241205 | 24 | 12 | MS |
| 1PM241506 | 24 | 15 | M6 |
| 1PM251506 | 25 | 15 | M6 |
| 1PM252008 | 25 | 20 | M8 |
| 1PM281506 | 28 | 15 | M6 |
| 1PM282008 | 28 | 20 | M8 |
| 1PM301506 | 30 | 15 | M6 |
| 1PM302008 | 30 | 20 | M8 |
| 1PM321506 | 32 | 15 | M6 |
| 1PM322008 | 32 | 20 | M8 |
| 1PM332008 | 33 | 20 | M8 |
| 1PM351506 | 35 | 15 | M6 |
| 1PM352008 | 35 | 20 | M8 |
| 1PM381506 | 38 | 15 | M6 |
| 1PM382008 | 38 | 20 | M8 |
| 1PM401506 | 40 | 15 | M6 |
| 1PM402008 | 40 | 20 | M8 |
| 1PM421506 | 42 | 15 | M6 |
| 1PM422008 | 42 | 20 | M8 |
| 1PM452008 | 45 | 20 | M8 |
| 1PM482008 | 48 | 20 | M8 |
| 1PM502008 | 50 | 20 | M8 |
| 1PM552008 | 55 | 20 | M8 |
| 1PM602008 | 60 | 20 | M8 |
| 1PM632008 | 63 | 20 | M8 |
| 1PM652008 | 65 | 20 | M8 |
| 1PM702008 | 70 | 20 | MS |
| 1PM76200S | 76 | 20 | MS |
Agricultural, Automotive, Industrial, Marine, P Clips

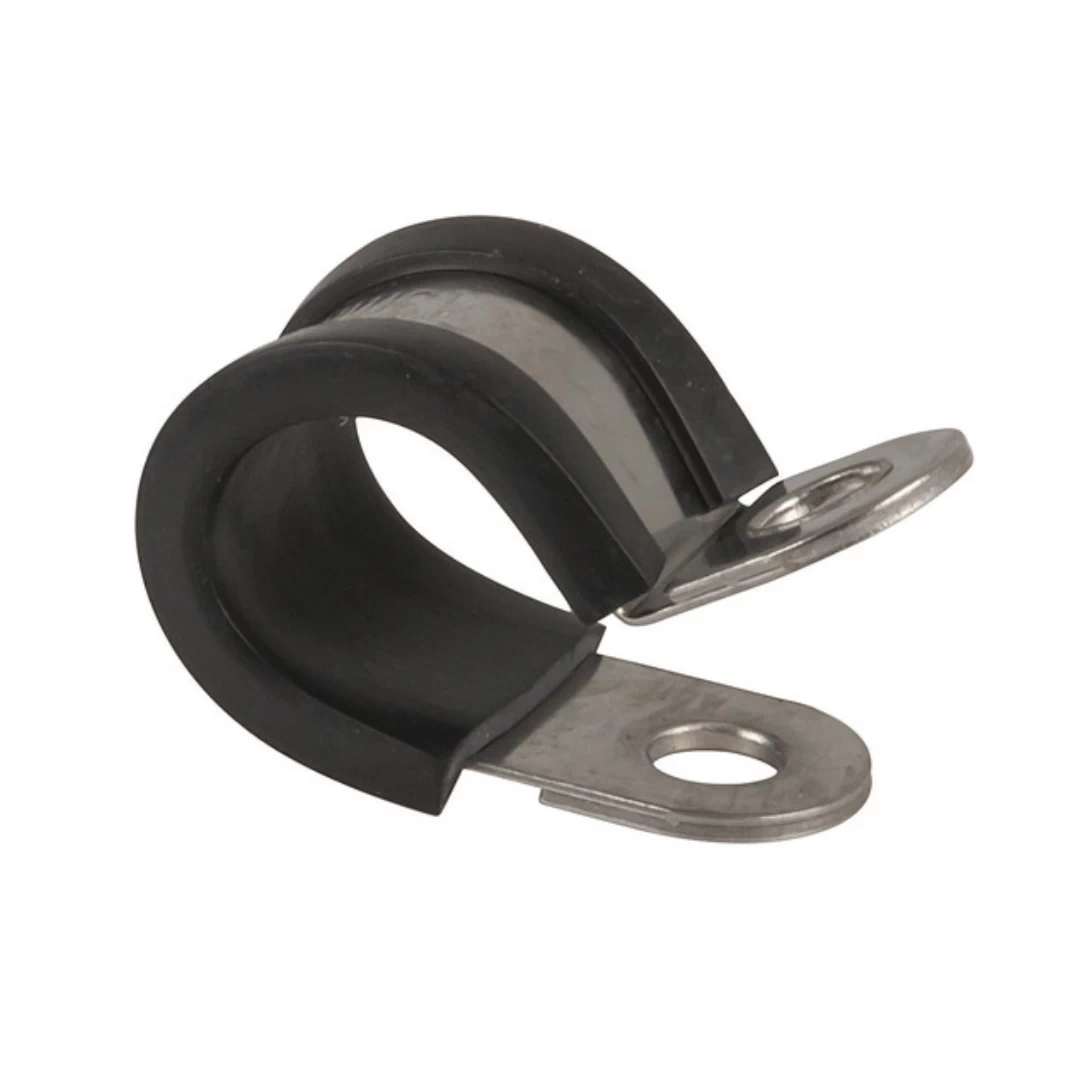

P Clamps
‘P’ clamps also called the cable clamps can be used forpermanent or semi permanent cables, harnesses, hose or pipe forfixing to practically any surface – where superior cableprotection, minimizing weight and retaining a strong hold is important.‘P’ clamps are particularly recommended for mounting pipes, electric cable ducting and hosing in a multitude of different applications.
Ascrew, bolt or rivet can be used toattach the cable clamp securely.
The clamps are manufacture from mild steel and are zinc plated forextended corrosion resistance. They come with EPDM rubber sleeve made to DIN 3016.
‘P’-clamps are also available ,on request, in stainless steel forsuperior protection from harmful elements in marine applications or extreme weather areas.
